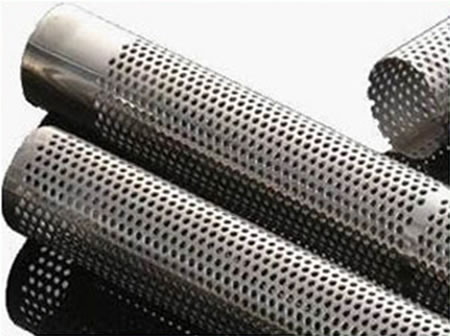

Straight Seam Welded Perforated Tube

Straight line welding and spiral wound welding are two major weld processing for the perforated metal tubes. Perforated pipes or tubes welded in straight line needs simple processing at low cost. Straight welded tubes have less strength compared with the spiral wound welded perforated metal pipes, with decreased welding seams at 30% to 100% rates.



More Technical Details:

Steel Cylinder Welded Tube at Less Cost

Straight line welded perforated tubes are mostly small diameter tubes while spiral wound welded tubes are mainly big diameter pipes.

This is a product with high work efficiency widely used in general industrial filter supports.

Surface treatment: Hot Dipped galvanizing

Straight line welded Tube diameter: custom made

Technical Information of Straight Seam Welded Tubes:

Tube Outer Diameter:10~273mm

Tube Wall Thickness: 1.0 ~15mm

Zinc coating:
Hot-dip galvanized steel pipe: 200 ~500g/sq.m;
Pre-galvanized steel pipe: 60 ~150g/sq.m

Standard:
JIS G3444-2006,GB 8163-1999,DIN1626,DIN2444,BS 1387,GB/T3091,ASTM A53-2007,ASTM A213-2001,GB/T8162-1999

Material:
10#,20#,45#,A53(A,B),A106(B,C),St37,St52,16Mn,Q235,Q345.

Surface:
Bared,Galvanized,Oiled,Color Paint,3PE,or Other Anticorrosive Treatment.

Pipe Length: Max.12maccording to customers' requirement.
